The slitting machine provides a cost-effective solution for precise and fast fabric cutting of the desired dimensions.

TECHNICIAL SPECIFICATIONS

Maximum Let Off 1000 mm

Maximum Let Off Diameter 1800 mm

Maximum Cylinder Width 1200 mm

Let Off Hub Inner Diameter 3 ′ ′ and 12 ′ ′

Maximum Winder Diameter 1800 mm

Inner Diameter of Winder Core 3 ′ ′ and 12 ′ ′

Cutting System Crush Cutter / Rotary-Razor Blade System

Edge Control System Tolerance ± 1 mm

Edge Waste Vacuum System / Tolerance Winder

Machine Maximum Speed 150 m / min

OPTIONS

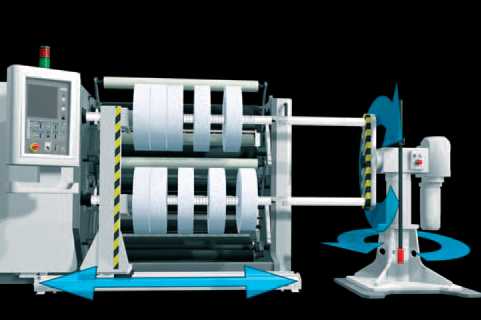

Roll Unloading System

Ergonomic unloading of sliced bobbins from the machine. Increases productivity by increasing machine uptime.

EDGE WASTE SUCTION SYSTEM

Used with special vacuum system and waste collection cart Ergonomics and layout in the work area.

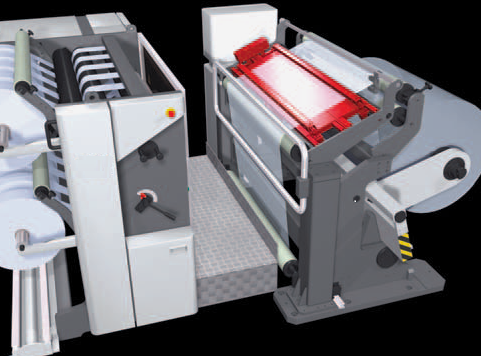

OPERATOR PLATFORM AND JOINING TABLE

Facilitates operator control of the machine, reduces setup times. Provides an ergonomic working environment.

The new coil significantly reduces loading time and increases productivity.

WORK SAFETY

Ergonomic release stand

Patented safety chuck system for locking operation

Blade protection

Emergency stop sensors

Ergonomic Wrapper

Audible and Illuminated Warning System
